This semester's Astro 9ABC class had some pretty talented and well-equipped young astrophotographers. This crop of photos is arguably the best ever in the long history of this course! Our "final exam" on Dec 11 was really just celebrating the results and some mutual sharing of ideas and techniques. Each student was required to submit 5 gallery images to be shown here. So, I'll be assembling this page over the coming days here in mid December 2024.
We were treated by a rare bright comet - Comet A3 Tschunian-ATLAS - which at its brightest got to -5 magnitude, but too close to the sun to see, but still as bright as Venus briefly in the evening sky, although fading quite rapidly as it moved deeper into the evening sky. We did a class trip to the big meadow west of UC Santa Cruz, and some of us also up Hwy 9 to get great higher-altitude images and also an asteroid occultation after the comet set.
Some scenes from our class...

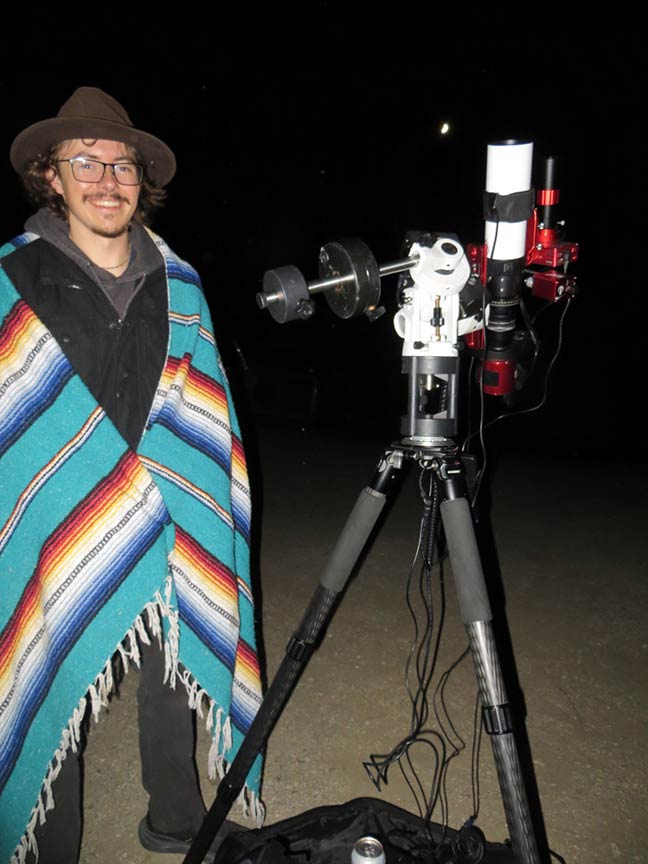

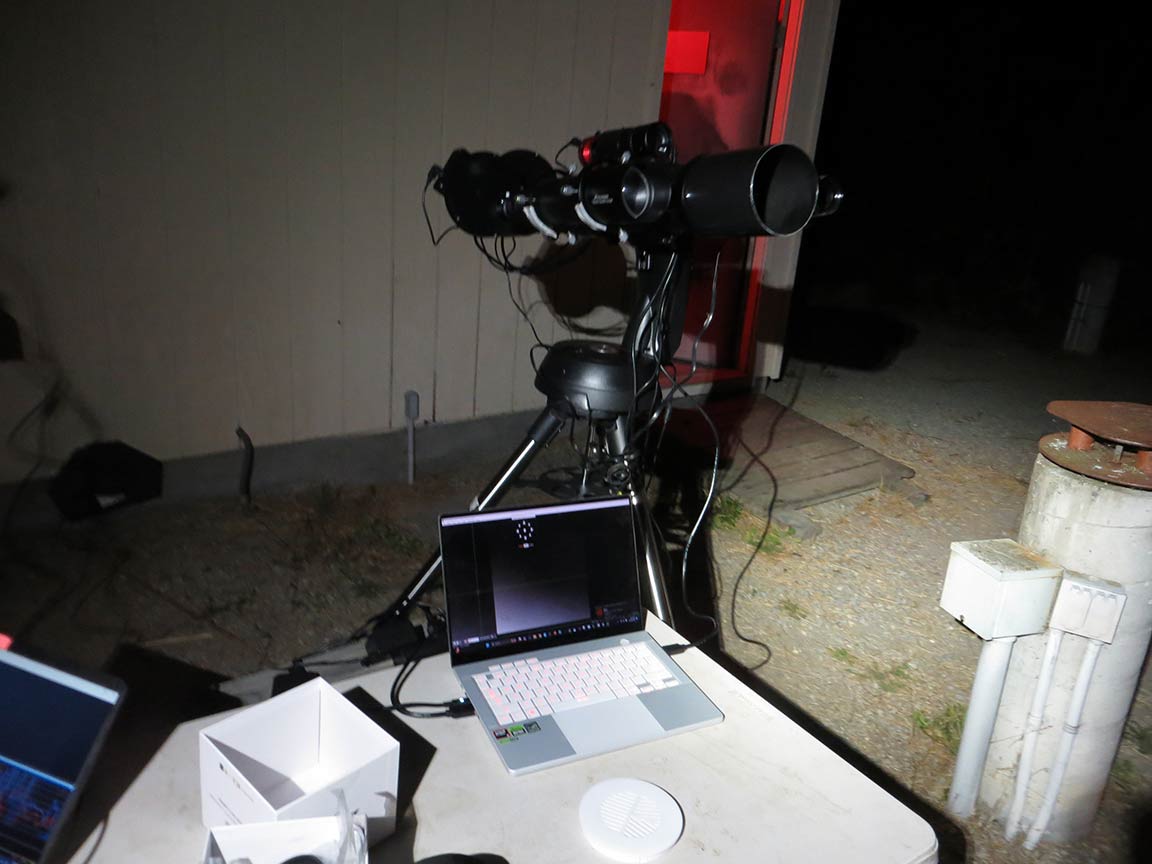

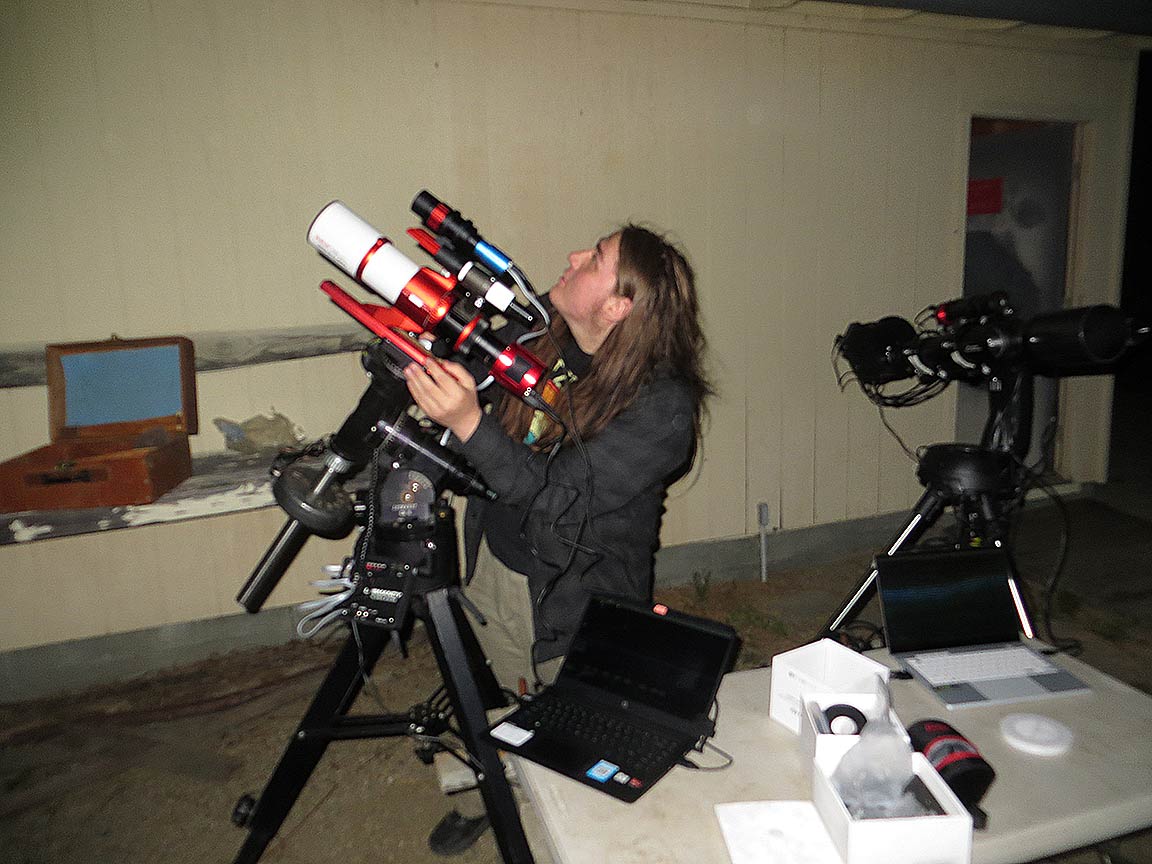

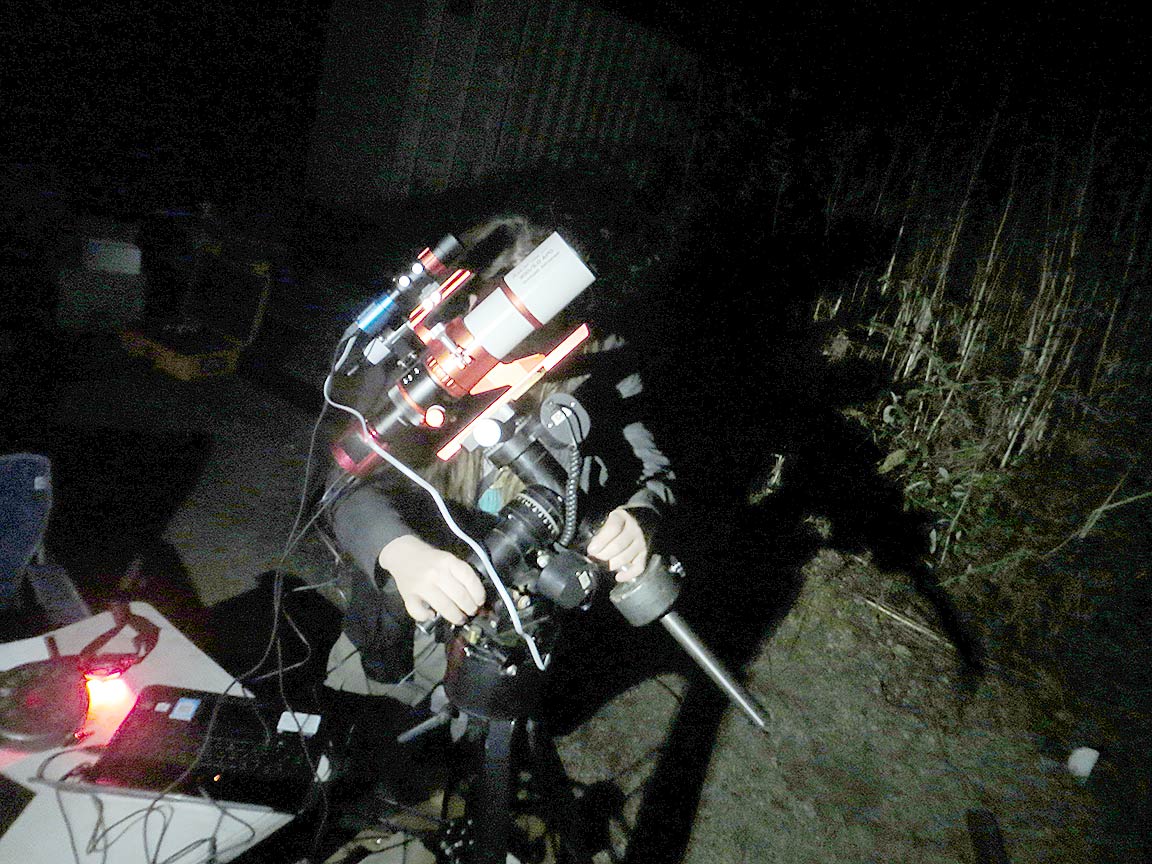

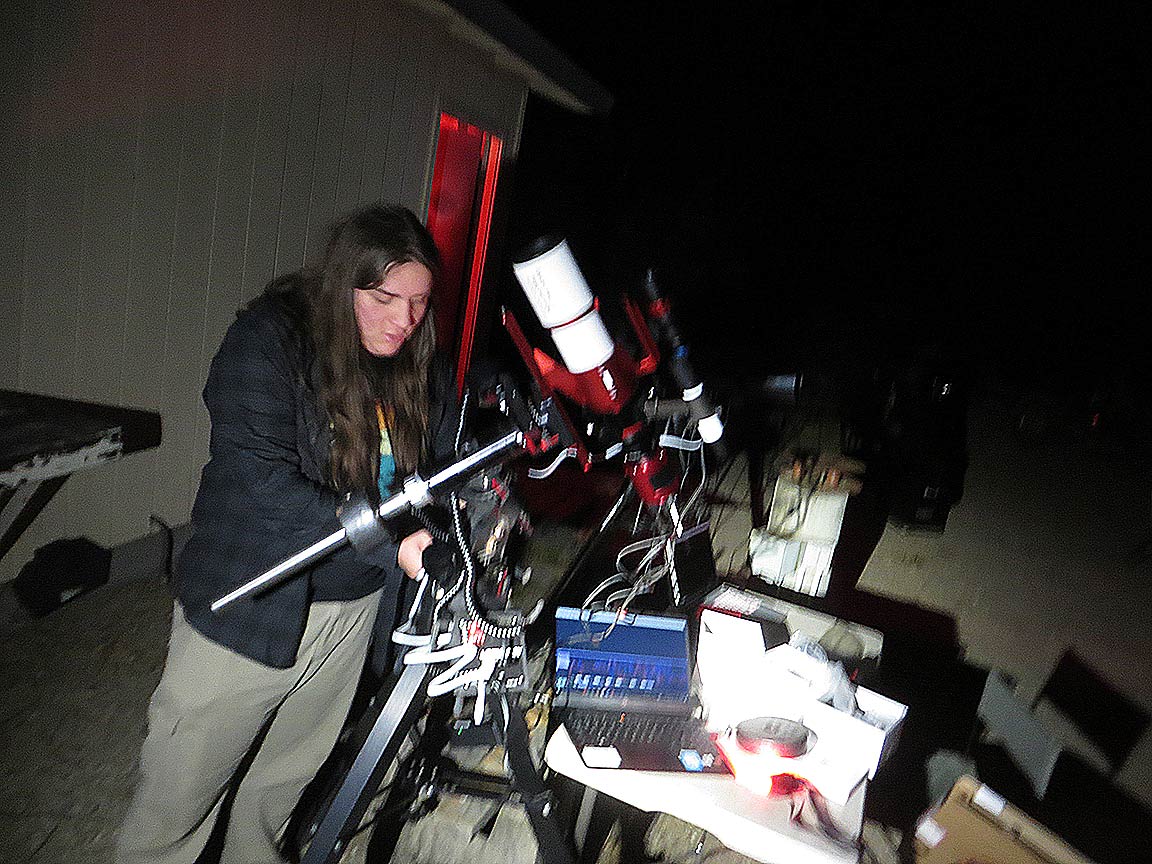

I have to give great credit to Bernard, who took on the task of helping us make best use of our available gear and teaching me how to use our new Askar refractor with software NINA. In November, upon my sharing the discovery of the binary asteroid Martschmidt, he took on the task (un-asked) of using his own gear getting dozens of hours of photometry on the asteroid itself, to help understand the nature of this newly interesting object. |

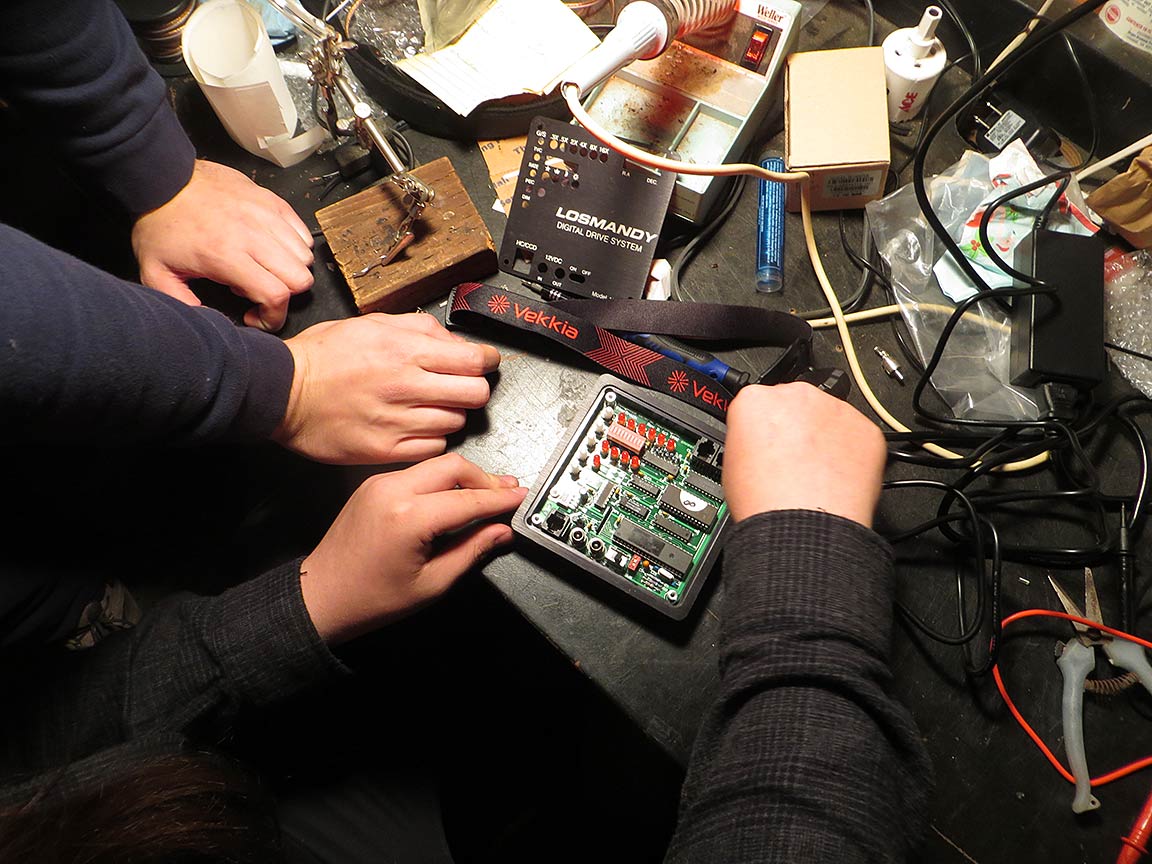

Next trouble was the Losmandy GM8 computer, which had a a power glitch. Sandy and Bernard got out the VOM meter and soldering iron and diagnosed the failing, and got it working again. |

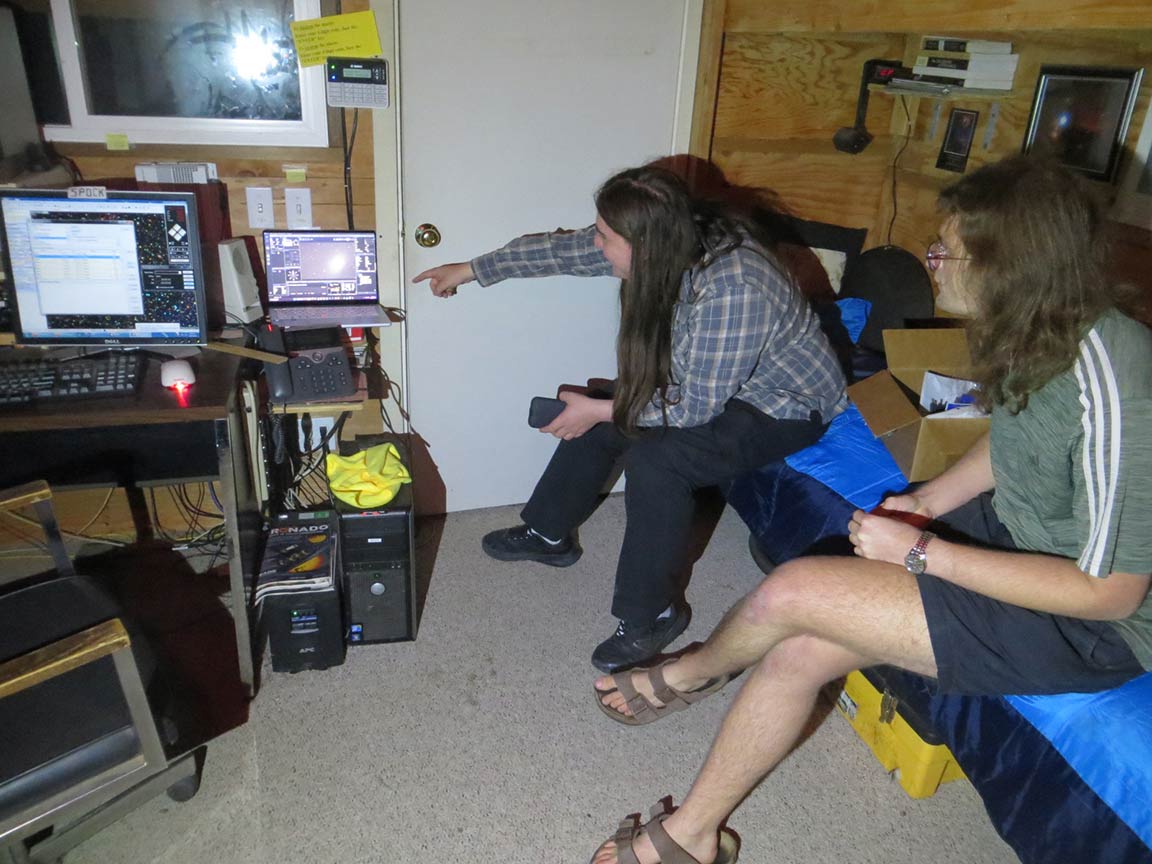

Another night, as fog rolled in too late to justify retreat from the Observatory to the classroom, we tried out laptop software here in the Warm Room. |
Alondra... |
diligently doing homework under the 8SE tripod |

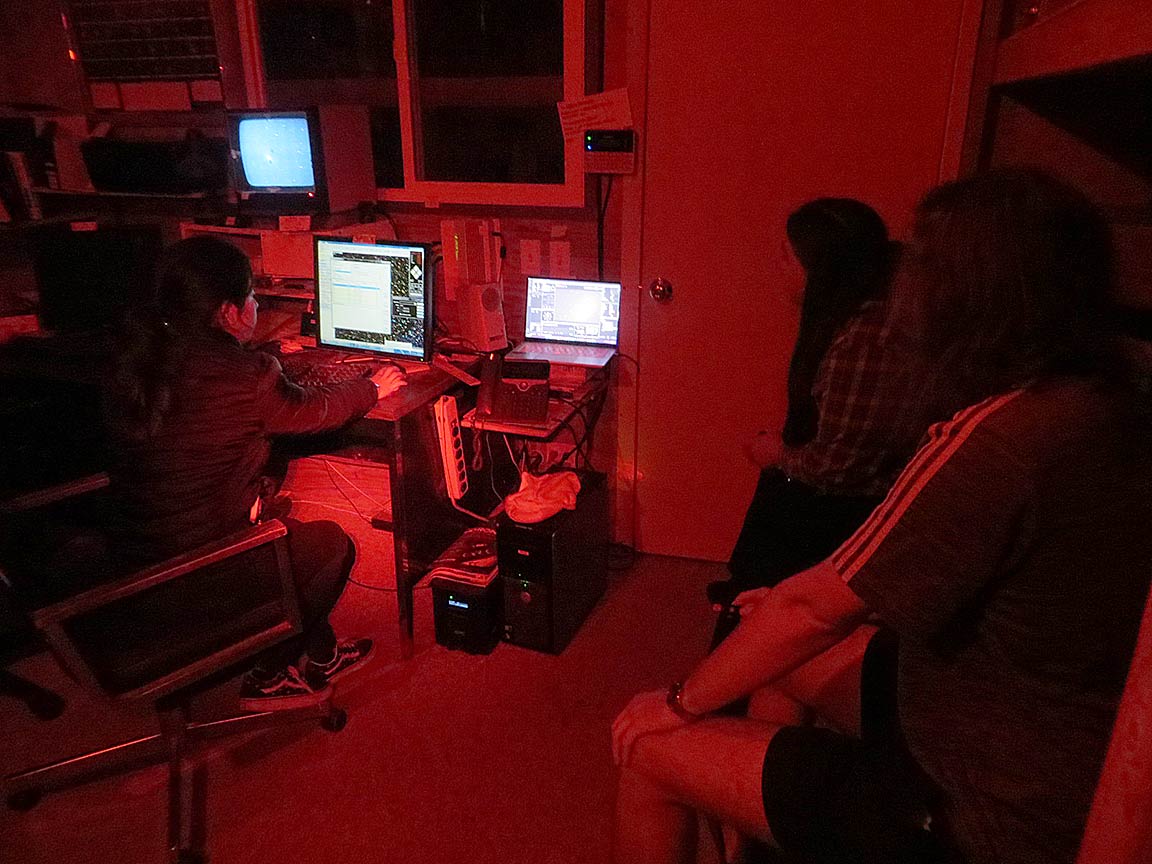

Under night vision friendly red light as Alondra shepherds images as they came in from the Dome Room next door. Images of Comet A3-T-ATLAS. |
Subject: Comet Atlas or Tsuchinshan-ATLAS. (Alondra Rivera-Munoz) CCDops: Utility, Dark subtract from 3 photos at a temperature of 25, Flat for cometAtlasNOV6-1 / 2 / 3 was taken nov. 3, All were then single color shot, Turned into .tif files, Registax: Stacked, Aligned, Processed by the “Do All” button, Photoshop: Turned into 8-bit, Image adjustments (curve), Space noise reduction action done 3 times, Lots of bandage command, Green saturation and hue turned to -100, Magenta saturation turned to -100, Filter: Sharpen (Unsharp mask with 60% 1.0 radius and Threshold 0), Deep space noise reduction, Increase star color action, Stamp hot spots, Filter: noise (Despeckle), Make stars smaller done 6 times, Image adjustments (curve), Filter: sharpen (Sharpen), Night conditions: Clear night, Chip temp was at 25 degrees, At the time of this picture (November 6) the comet was heading back to the outer Solar system and disappearing from view, Small amount of moon, Taken on the domed 12” CCD telescope, Exposure of 300”, Location to find on telescope at that time was 18h 22m 0s with a +3 53 31 and 3.8 dilation |
Subject: M33 or Triangulum Galaxy. (Alondra Rivera- Munoz) CCDops: Utility, Dark subtract at temperature 20 for all 3 photos, Flat for M33-1 was taken oct. 5, Flat for M33-2 was taken oct. 2, Flat for M33-3 was taken oct. 3, All were colored, Saved as .tif file, RegiStax: All 3 are then stacked, aligned, and processed with “Do All” , Photoshop: Turned into 8-bit, Image adjustments (curve), Space noise reduction action, Make stars smaller action done twice, Green saturation turned to -100, Filter: Sharpen (sharpen), Increase star color action, Magenta saturation +18, Space noise reduction action, Filter: Noise (Despeckle), Night conditions: Dark night, No moon, 2.723 million light years away, Taken on the domed 12" CCD telescope, Chip temp. at 20 degrees, Exposure length of 300" |
M31 or Andromeda Galaxy. (Alondra Rivera-Munoz) CCDops: Utility, Dark subtract at temperature 20 for all 3 photos, Flat for M31-1 was taken oct. 5, Flat for M31-2 was taken oct. 3, Flat for M31-3 was taken oct. 7, All single shot colored, All saved as .tif file, Registax: All 3 stacked, Aligned, Processed with “do all” button, Photoshop: Turned into 8 bit, Local contrast enhance action, Increase star color action , Spaces noise reduction action, Blue saturation/hue +44, Green saturation/hue -100, Bandage command repeated 15 times to rid of hot spots, Increased image color 2 times, Blue hue turned to -17 and saturation to +100, Make stars smaller action, Filter: Sharpen (sharpen) done 3 times, Filter: noise (Despeckle), Heal / Bandage done 2 more times, Night conditions: Dark and kind of foggy, Full moon, Target 2.537 million light years away, Taken on the domed 12” CCD telescope, Chip temp at 20 degrees, 300” exposure (RN: good exposure; I did curve it upwards and did a contrast enhance for the gallery here) |
Clouds over Cabrillo Observatory (Alondra Rivera-Munoz) : Nikon D7000, Clear night, Still bright out, No moon, F/5.6, ISO: 400, Zoom 300, 4” exposure , On tripod, Photoshop: Clone stamp to remove object in bottom left corner, Crop photo to eliminate space and apply to the “Rule of Thirds”, Unsharp mask at 50% 1.0 radius and 0 Threshold , Increase star color action, Blue saturation +55, Another unsharp mask at 106% 1.0 Radius and Threshold 0, Space noice reduction action, Image adjustments (curve), Enhance local contrast action, Space noice reduction action |
Subject: Heart Nebula. (Alondra Rivera-Munoz) (RN: this was a very faint and difficult object for our 12" scope. I did a lot of pulling up from sky, from the submitted image; noise suppression, curving, star size reductions to make it better for the gallery here). |
Ava Kieffer, North American Nebula (NGC 7000), 2,202 light years away. 12’’ Meade LX200, SBIG ST2000xcm, 6x5min exposure, f/10, November 13, 2024, moon in the sky, cabrillo observatory Dome CCDOPS: Version 5.52 Dark subtract -26C, Flat Field, color process SRGB+gamma, Registax: Version 5.1.9.2, stack 5 frames Photoshop: Version 7.0, green saturation -100, local contrast enhance, stars smaller x3, despeckle, space noise reduction, curves, positioning was rushed so the galaxy is not centered |
Ava Kieffer, Ring Nebula (M57), 2,283 light years away. 12’’ Meade LX200, SBIG ST2000xcm, 3x5min exposure, f/10, November 13, 2024, moon in the sky, cabrillo observatory Dome CCDOPS: Version 5.52 Dark subtract -26C, Flat Field, color process SRGB+gamma, Registax: Version 5.1.9.2, stack 3 frames Photoshop: Version 7.0, green saturation -100, local contrast enhancement, curve, median |
Ava Kieffer, Tsuchinchan-ATLAS Comet (C/2023 A3). Nikon D7000 SLR, 10 sec, f5.6 aperture, 6400 ISO, 300 zoom, October 16, 2024, moon in the sky, off Empire Grade near UCSC arboretum. Registax: Version 5.1.9.2, stack 3 frames Photoshop: Version 7.0, green saturation -100, levels, sharpen, healing mask, unsharp mask, make stars smaller crop and size for print and gallery |
Ava Kieffer, The Pleiades (M45), 444.2 light years away. 12’’ Meade LX200, SBIG ST2000xcm, 5x5min exposure, f/10, November 13, 2024, moon in the sky cabrillo, observatory Dome CCDOPS: Version 5.52 Dark subtract -26C, Flat Field, color process SRGB+gamma, Registax: Version 5.1.9.2, stack 5 frames Photoshop: Version 7.0, green saturation -100, increase star color, despeckle, local contrast enhancement, space noise reduction, sharpen, filter median |
Ava Kieffer, Flaming Star Nebula (IC405), 1,500 light years away. 12’’ Meade LX200, SBIG ST2000xcm, 3x5min exposure November 13, 2024, moon in the sky cabrillo, observatory Dome CCDOPS: Version 5.52 Dark subtract -25C, Flat Field, color process SRGB+gamma, Registax: Version 5.1.9.2, stack 3 frames Photshop: Version 7.0, green saturation -100, healing brush (remove bad pixels), levels, brightness/contrast, despeckle, local contrast enhancement |
William Glass
|
William Glass Shot with; ASI 662 MC |
William Glass
RN: See the faint anti-tail projecting down/right from the comet's head? It was only briefly visible this night as the Earth passed through the orbital plane of the comet. |
William Glass |
Will Glass Sep 27 2024 Bonny Doon ECO Preserve |
Bernard Huynh
|
Bernard Huynh |
Bernard Huynh Gear:Nikon z50, Nikon 250-50mm z lens1x6s |
Bernard Huynh Gear: ASI533MC Pro, Orion ED80, Orion Sirius EQ-G, SVBony UV/IR Cut Filter. (RN: Beautiful deep image. I took the very dark submitted image and used the wide dynamic range allowing pulling the nebulae out of the sky, then sharpened to help stars, curved again, color saturation and vibrance.) |
Bernard Huynh |
Great Nebula in Orion-M42- April 9,2024 Taken at the Cabrillo Observatory in Aptos, California. The moon was just beginning |
Dumbbell Nebula-M27- October 2, 2024 |
Sombrero Galaxy-M104- May 7, 2024 |
Eastern Veil Nebula-Caldwell 33- September 11,2024
|
Whirlpool Galaxy-M51- April 30,2024 |
By Thorsten Hess (NGC 281), taken on the ZWO ASI183 MC Pro (set up by |
By Thorsten Hess Taken on my Google Pixel 6, South of Kalispell Montana off (RN not a course photo, but an older photo from 2 years ago, no processing done). |
By Thorsten Hess By Thorsten Hess (RN then did the processing; curves, color saturation, noise subtraction, sharpening, in Photoshop) |
By Thorsten Hess Taken on my Google Pixel 6 through my Astromaster 130 with a 15mm eyepiece, at my house off of Soquel Dr near the Cabrillo Campus on May 15th (no processing, and an old photo not done in the course. So RN did sharpening, curves, and color saturation) |
By Thorsten Hess - Dome Crew |
Wednesday October 23, 2024 (RN: arrived as PDF, I screen captured, sized, rotated it to fit our gallery. Target is M27) |
Wednesday October 30, 2024
|
Comet C/2023 A3 (Tsuchinshan-Atlas) |
Total Lunar Eclipse (Blood Moon).Date: Wednesday May 26, 2021
|
Waxing Crescent Moon 23% Illumination, Date: Thursday December 5, 2024 |
M27 "Dumbbell Nebula" Taken on 09/29/2024, at around 22:10 ...with out outside temp of 54 degrees, using the Vespera Pro scope system, which uses a Sony IMX 676 sensor, total shot time was 30 minutes, with 10-second exposures, and a gain set to 15dB. The sky was mostly clear, with a full moon. Processing: I opened the file, then used Dynamic Background Extractor to remove some fuzz and make the image color match, used color calibration to add some color to the nebula and some stars, used blurX to sharpen the image and stars, then noiseX to lower grain on the image. Removed the stars and used histogram in the nebula alone to make the colors pop, and then re-added the stars and performed one last noiseX and some sharpening to make the stars look crisp. Saved the file. |
M31, Andromeda Galaxy, Taken 09/26/24, at 23:07, with an outside temperature of 55 degrees, taken with Vespera Pro that uses a Sony IMX 676 sensor, total shot time was 60 minutes, with an exposure length of 10 seconds per shot, and a gain set to 16dB. The sky was clear with a full moon. Process, loaded image into Pixinsight, cropped the photo by 6%, then used histogram settings to add some more vibrancy, then used blurX, followed by noiseX. I separated the stars and sharpened them separately using BlurX, adjusted the color codes to make it more vibrant, then used Re-Add to put the stars back into the one photo again, then saved. |
NGC 40 "Bowtie Nebula, Taken on 12/09/2024 at around 21:15 with an outside temp of 44 Degrees, on a Vespera Pro system, with a Sony IXM 676 sensor. Shot for 20 mins total with an exposure of 10 seconds for each photo, set to a gain of 17. For the process, I took the image and opened it in pixinsight, used the BlurX plugin to make the image smoother and less rigid around parts, cropped the photo down 7%, color corrected and sharpened it 15%, then I used NoiseX to get rid of some of the noise and pixels, then saved. (RN cropped the original by about 95%!) |
NGC7789 "Carolines Rose" Star cluster. Taken on October 23rd, 2024, with Vespera Pro scope, which uses a Sony IMX 676 sensor. I stacked 91 images from a total time on target of 15 minutes, at 10-second exposures, with a gain set to around 15dB, The night was clear and the temperature was about 44 degrees F. The Photoshop process consists of loading the image, using sharpen (auto), and then using the grain function to a lower value than standard to remove the noticeable grain, performing auto level and color, then increasing the hue by +3 and lowering the saturation by -2. |
IC1795 "Fishhead Nebula" Taken on December 8th, 2024. with Vespera Pro scope, with 336 images stacked over the course of 56 minutes with exposure time set to 10 seconds and gain set to 15dB. The chip used is a Sony IMX 676. Clear night and the outside temp was around 44 degrees F. The moon was in the first quarter phase as well. Process, PixInsight, loaded the file and cropped the image down 4% as I have noticed some odd stuff happening around the edges, then used the plugin blurX to tighten the stars up and make them less overwhelming, then after used starX to remove the stars from the main photo and then adjusted the stars to have some more color, using color curves, then adjusted the noiseX on the nebula to make it softer, then re-introduced the two files back together, and performed once last image noiseX to get rid of some noise near the center of the photo. |
Comet C2023 A3 (T. Atlas), Christopher Williams. Nikon D5100, 55mm, 4s, ISO 1600, f/9. Taken at the top of the Horticulture hill at Cabrillo College on 10/15/2024 at |
Comet C2023 A3 (T. Atlas), Christopher Williams. Nikon D5100, 100mm, 20x1.6s, ISO |
Purple Cloud Above The Observatory, Christopher Williams. Nikon D5100, 55mm, 5s, |
Full Moon, Christopher Williams. Nikon D5100, 300mm, 1/125s, ISO 100, f/16. Taken |
Whirlpool Galaxy (M51), Christopher Williams. ST2000XCM, 12" Meade LX200, 2x5min. Taken in the Dome at the Cabrillo Observatory on 09/11/24 at 21:22 PDT. 56% Moon 109° left of galaxy, No clouds, No fog, Bortle class 5 light pollution. CCDOPS: |
(not submitted)
(not submitted)
