This ia a wide path, long duration, high rank event. The duration is 6.0 seconds, and in a dark sky we can integrate long. The target star has no UCAC4 magnitudes, but V and R are given in OWc page, which I've averaged to get a W=13.1, but added to the asteroid, is W=12.6 combined; will drop to G=14.3 mag.

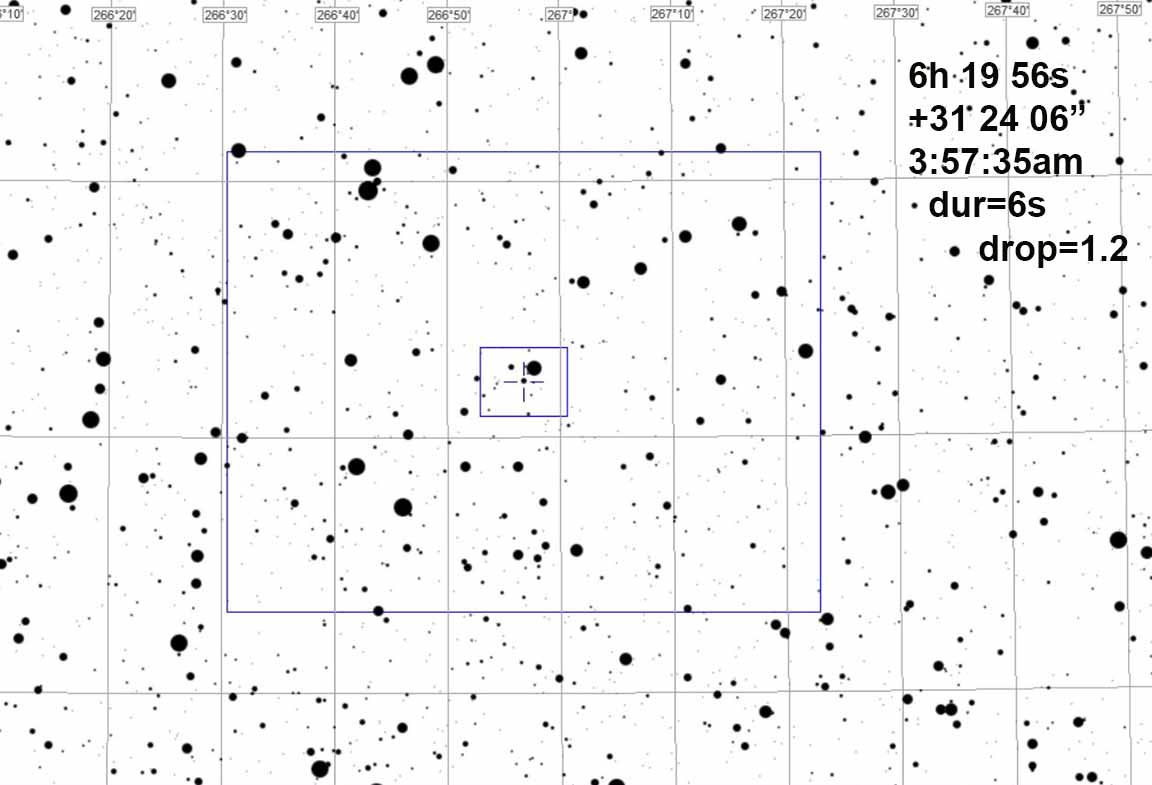

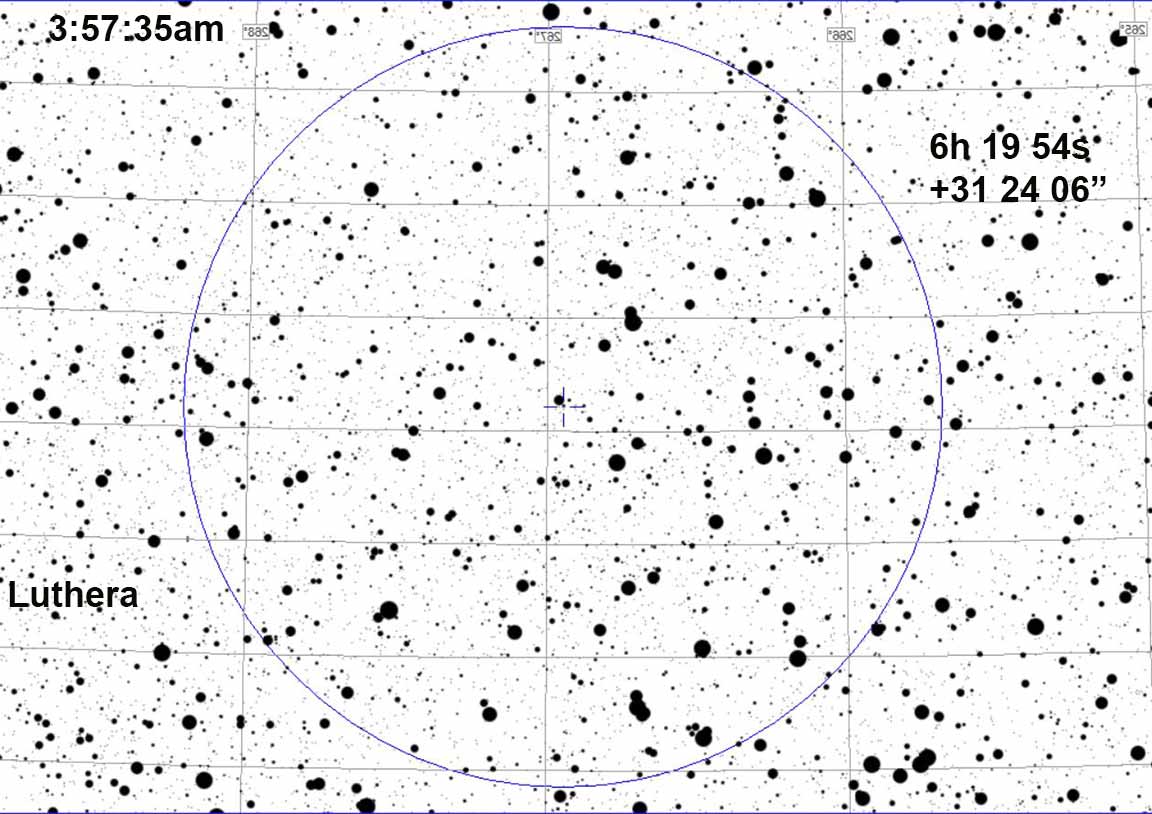

Alt=59, Az=270 due west, Halfway between the Pentagon and Gemini
|
|
Successful recordings for all 3 of our team

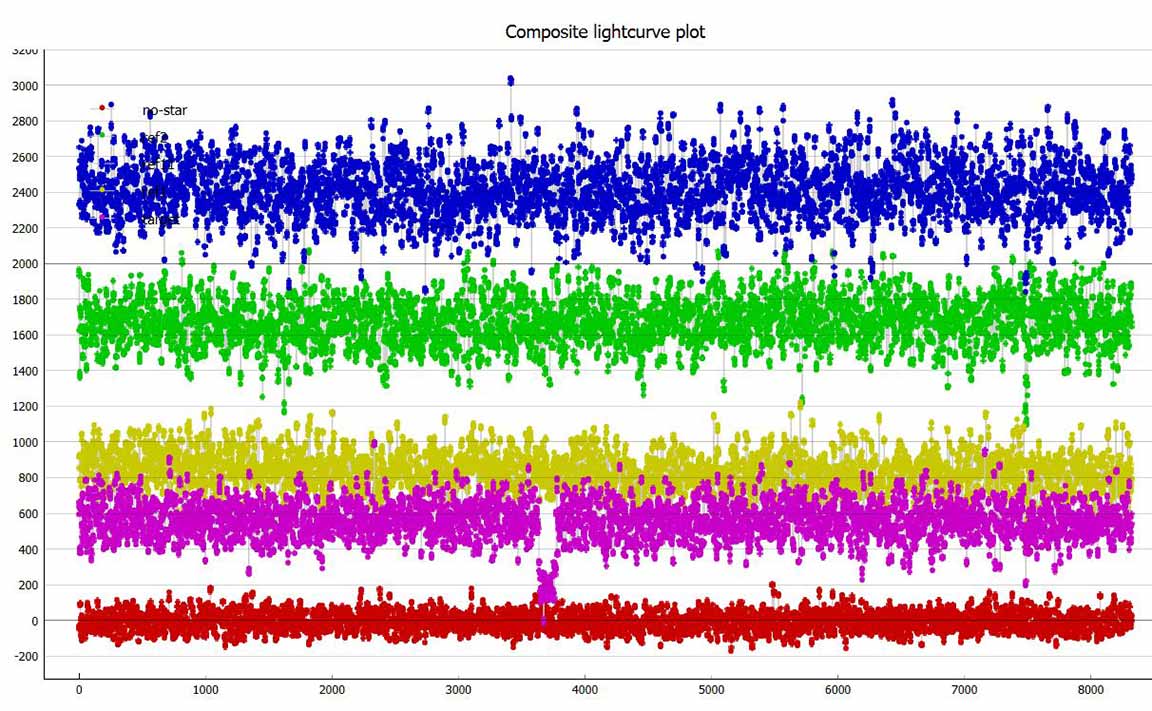

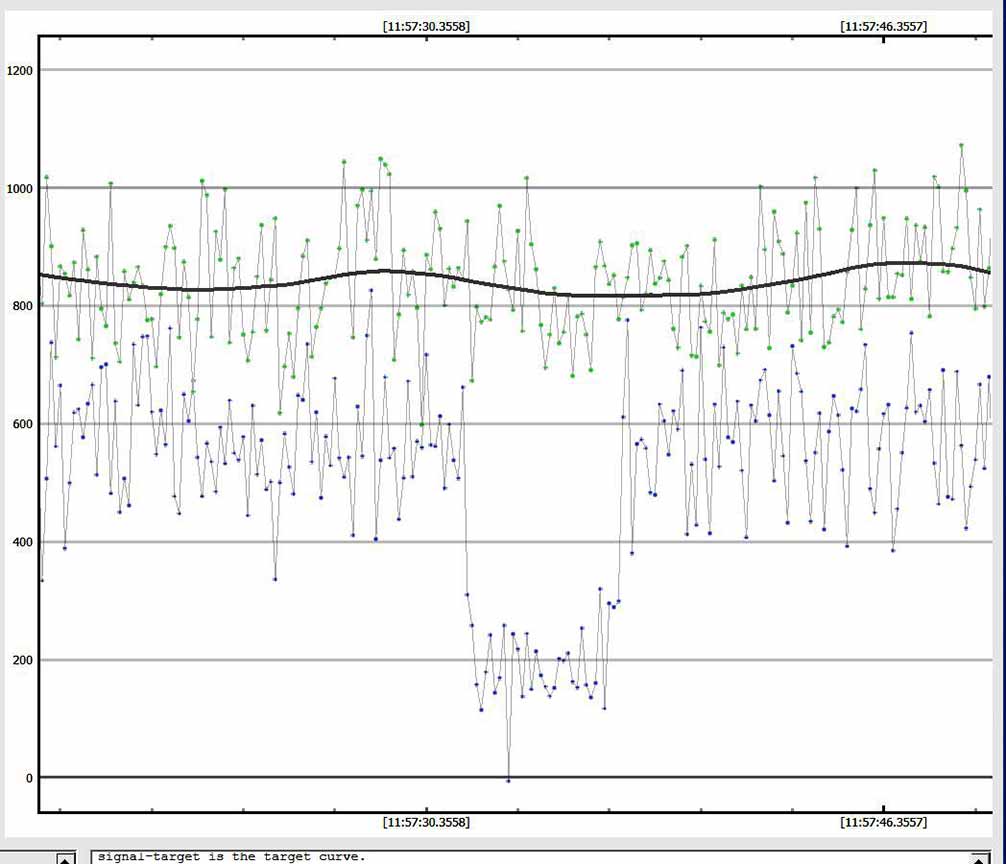

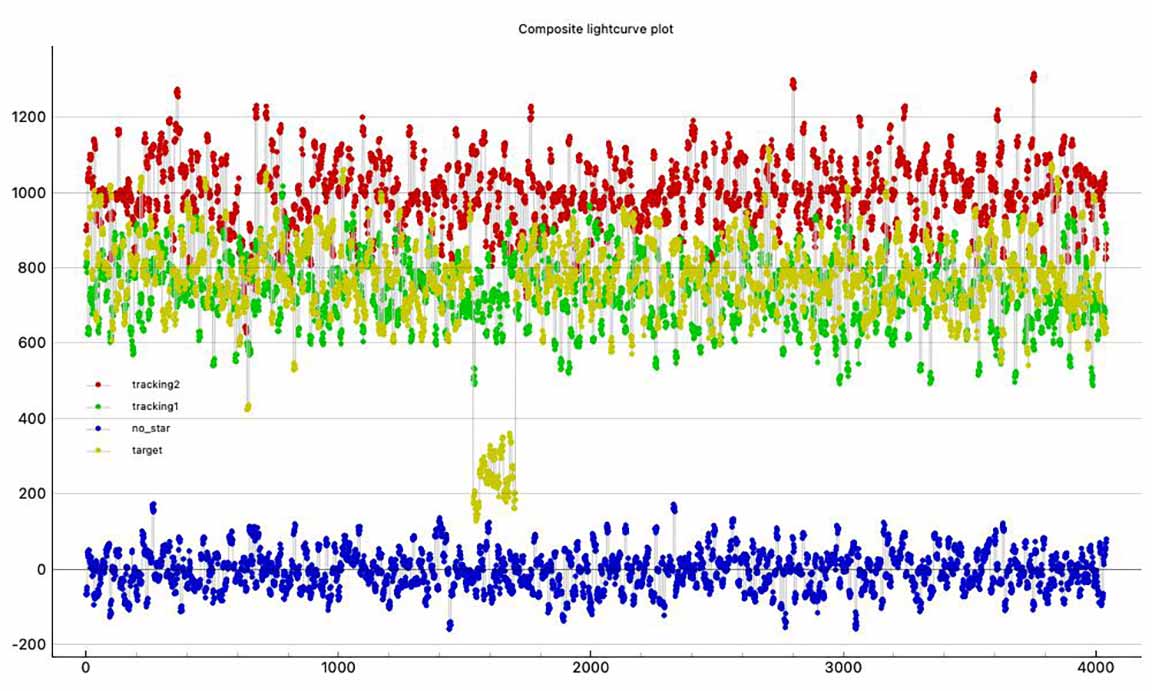

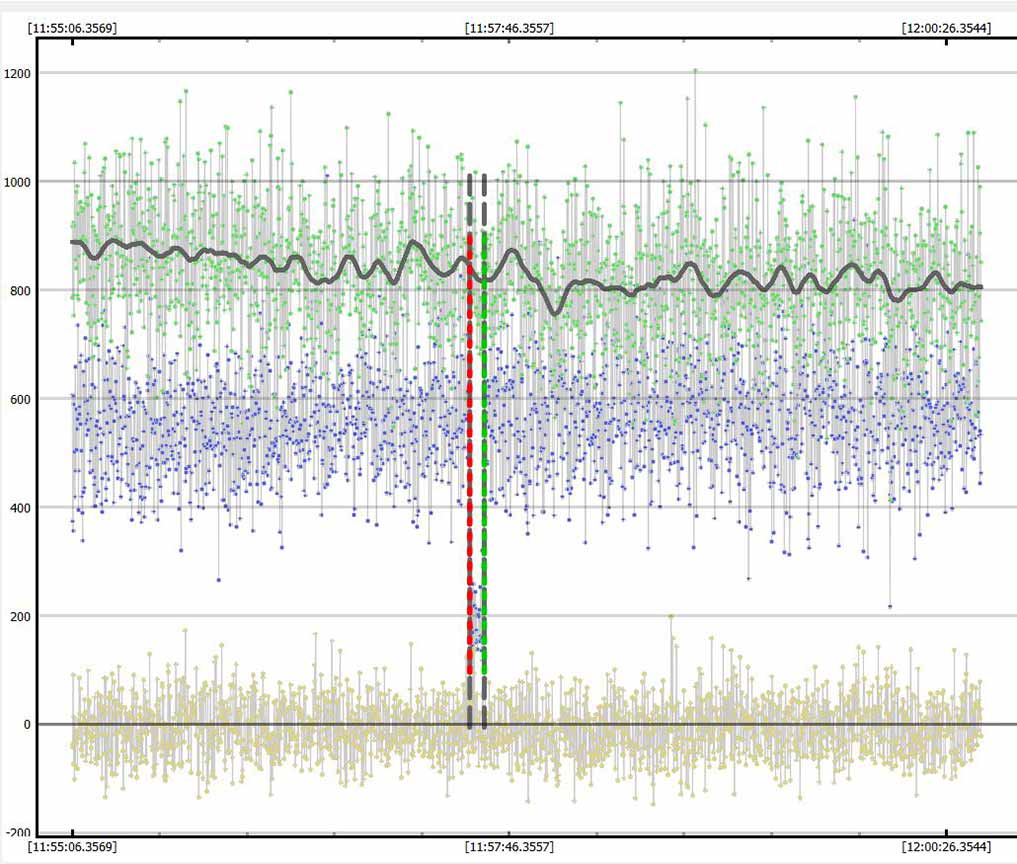

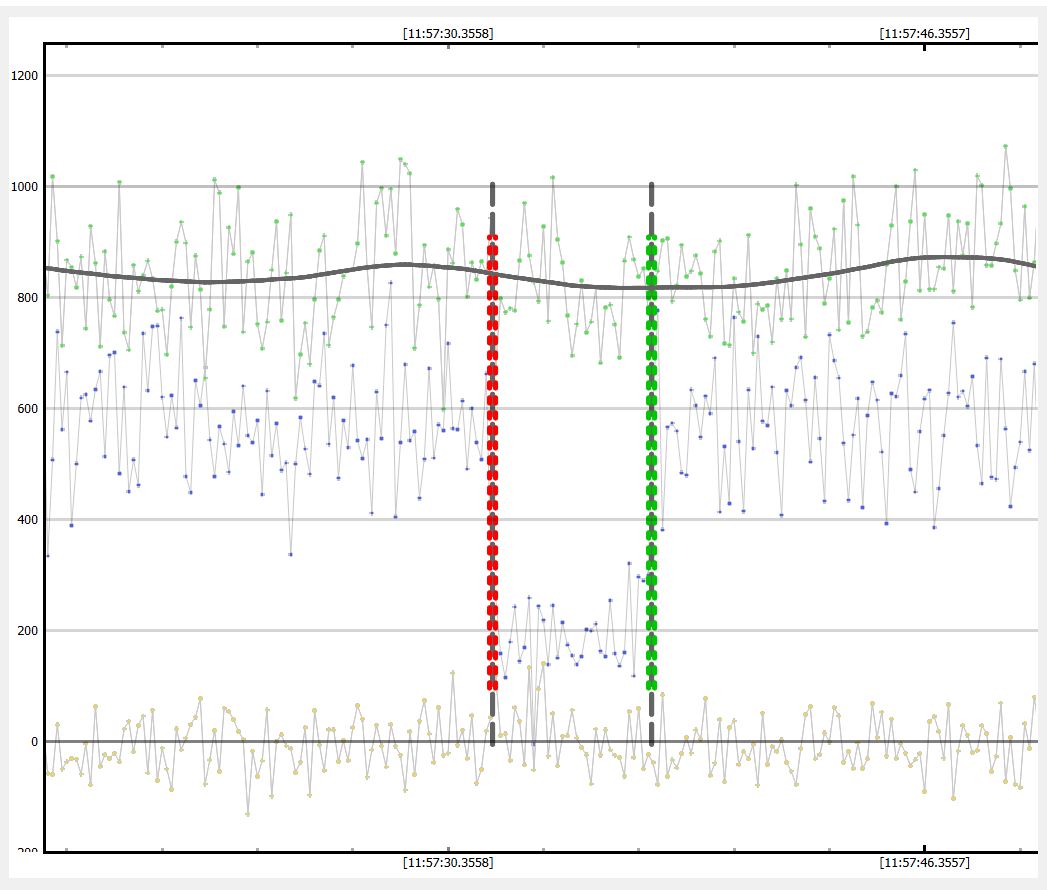

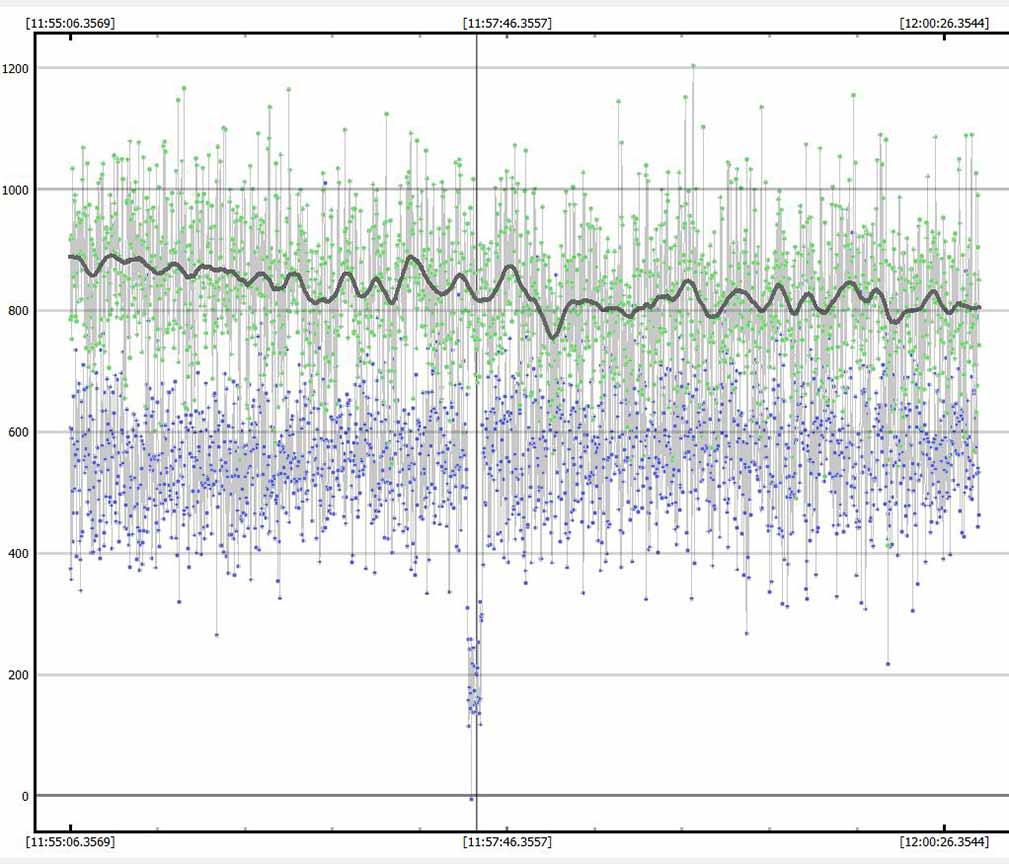

The below analysis is just a simple square wave. However, there's indication in both Kirk and my curves for some combination of Fresnel diffraction and a binary star as well. But his drop to zero happened at the beginning of the D, and mine was more like mid-way during the occultation. Can I make a stellar brightness and positions model to make sense of this? Anyway, here's the straight-forward square wave D and R.

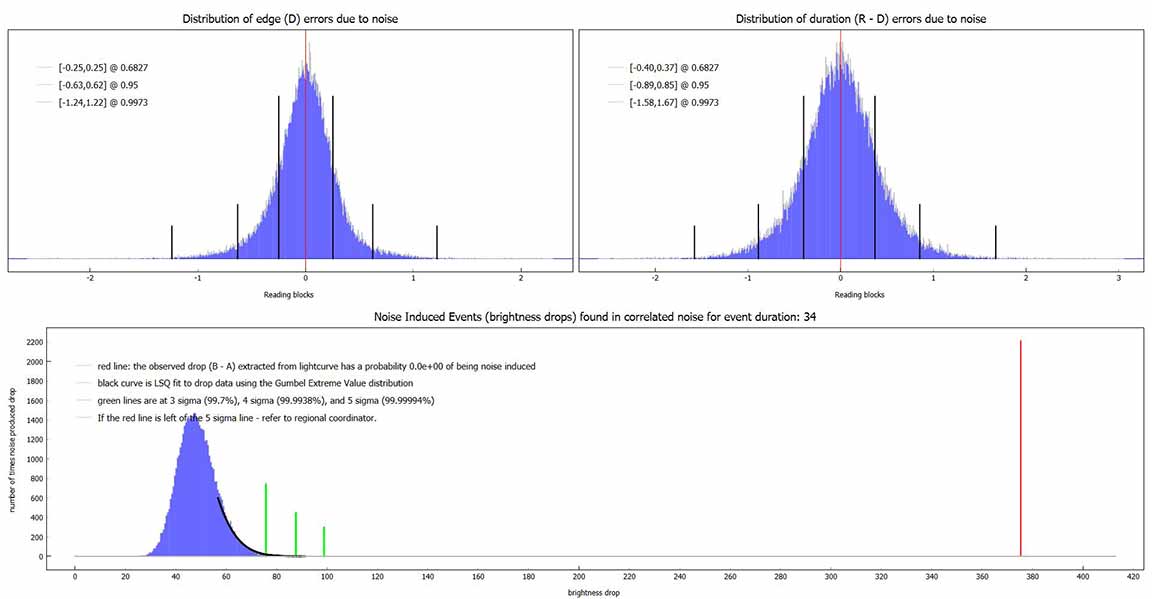

magDrop report: percentDrop: 66.7 magDrop: 1.194 +/- 0.148 (0.95 ci)
DNR: 3.98
D time: [11:57:31.8481]
D: 0.6800 containment intervals: {+/- 0.0402} seconds
D: 0.9500 containment intervals: {+/- 0.1003} seconds
D: 0.9973 containment intervals: {+/- 0.1969} seconds
R time: [11:57:37.1881]
R: 0.6800 containment intervals: {+/- 0.0402} seconds
R: 0.9500 containment intervals: {+/- 0.1003} seconds
R: 0.9973 containment intervals: {+/- 0.1969} seconds
Duration (R - D): 5.3399 seconds
Duration: 0.6800 containment intervals: {+/- 0.0615} seconds
Duration: 0.9500 containment intervals: {+/- 0.1392} seconds
Duration: 0.9973 containment intervals: {+/- 0.2599} seconds

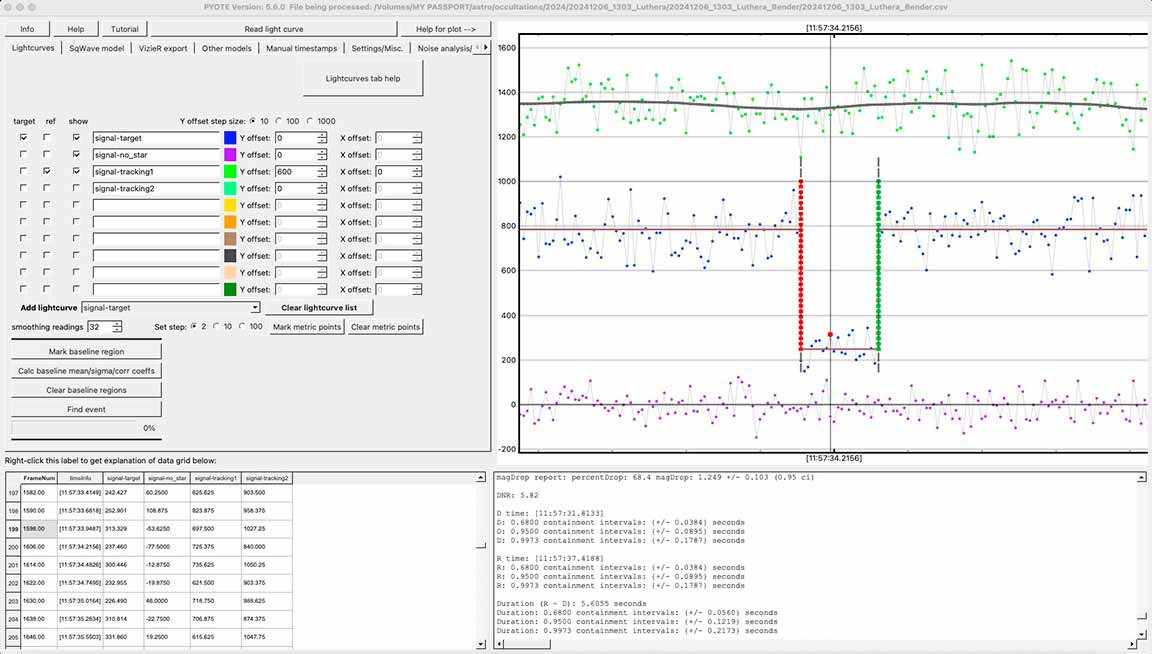

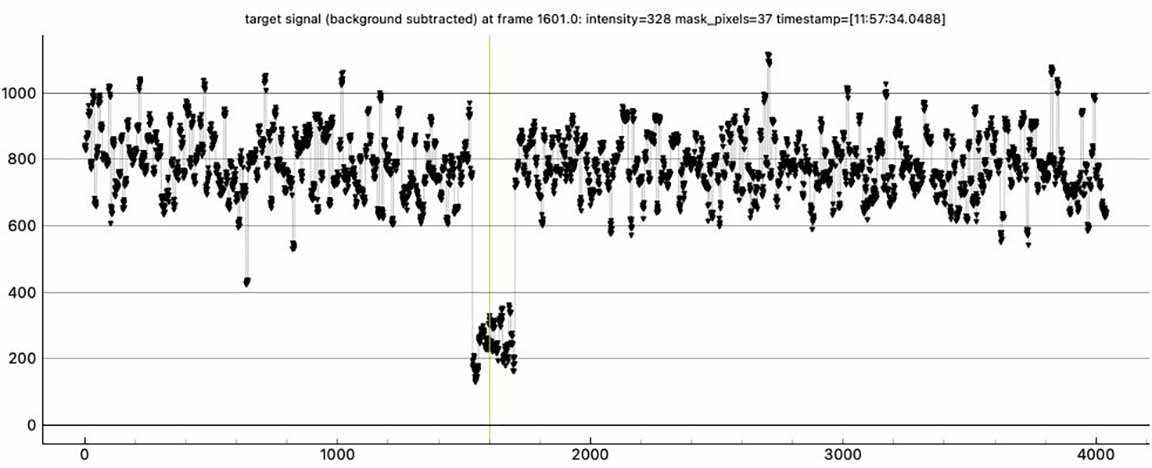

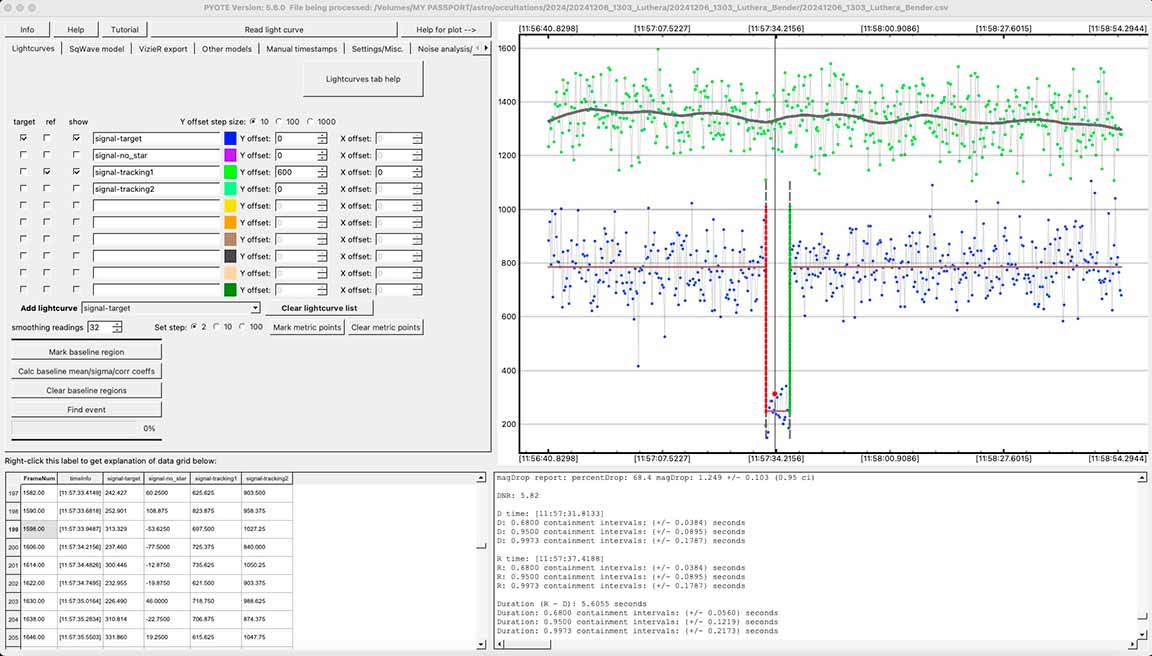

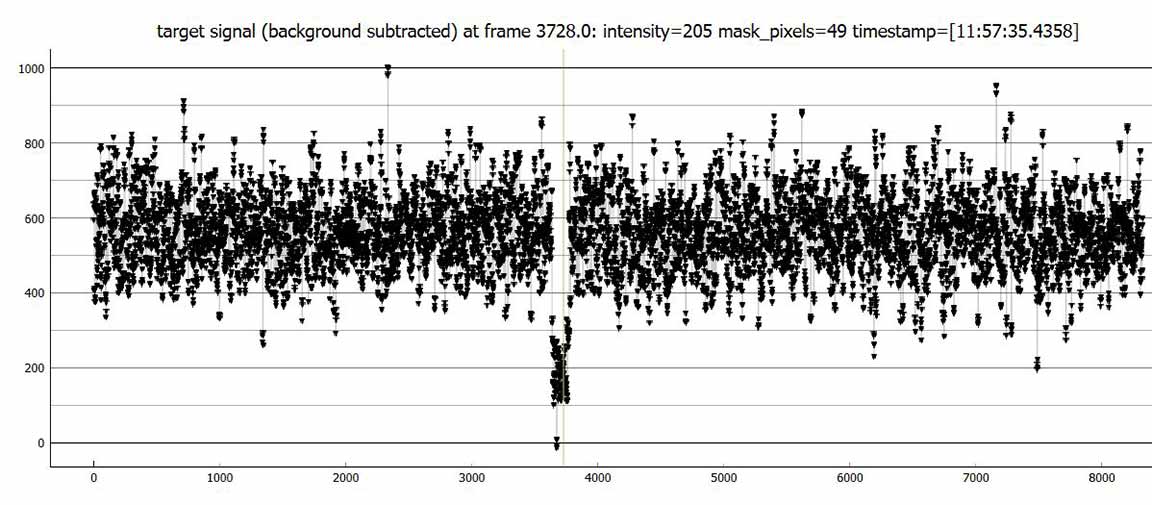

I got a 5.6055 sec event for Luthera, from home at 16x.
I thought I had it set to 8x, which would have worked, but I found I recorded at 16x.
magDrop report: percentDrop: 68.4 magDrop: 1.249 +/- 0.103 (0.95 ci)
DNR: 5.82
D time: [11:57:31.8133]
D: 0.6800 containment intervals: {+/- 0.0384} seconds
D: 0.9500 containment intervals: {+/- 0.0895} seconds
D: 0.9973 containment intervals: {+/- 0.1787} seconds
R time: [11:57:37.4188]
R: 0.6800 containment intervals: {+/- 0.0384} seconds
R: 0.9500 containment intervals: {+/- 0.0895} seconds
R: 0.9973 containment intervals: {+/- 0.1787} seconds
Duration (R - D): 5.6055 seconds
Duration: 0.6800 containment intervals: {+/- 0.0560} seconds
Duration: 0.9500 containment intervals: {+/- 0.1219} seconds
Duration: 0.9973 containment intervals: {+/- 0.2173} seconds
 |
 |
 |
 |
 |
